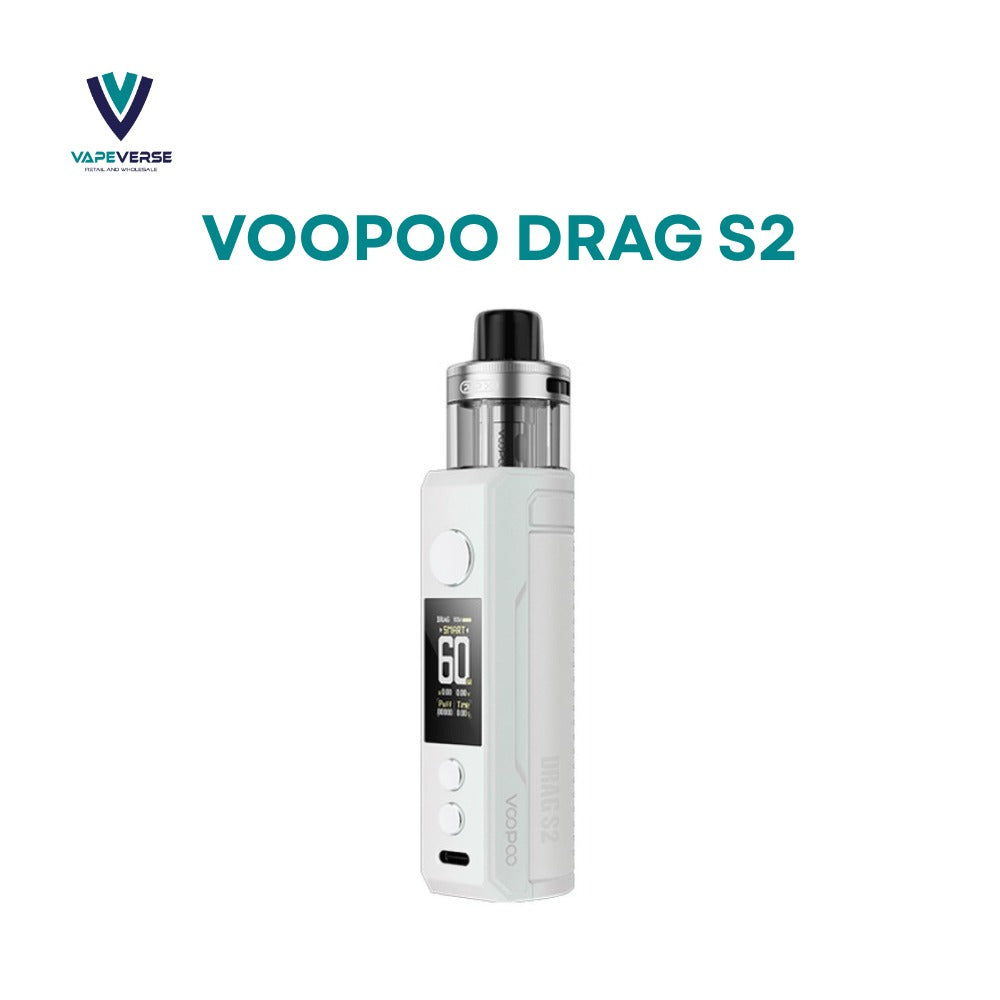

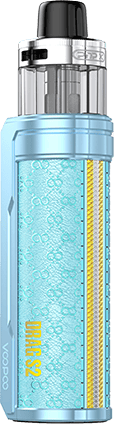

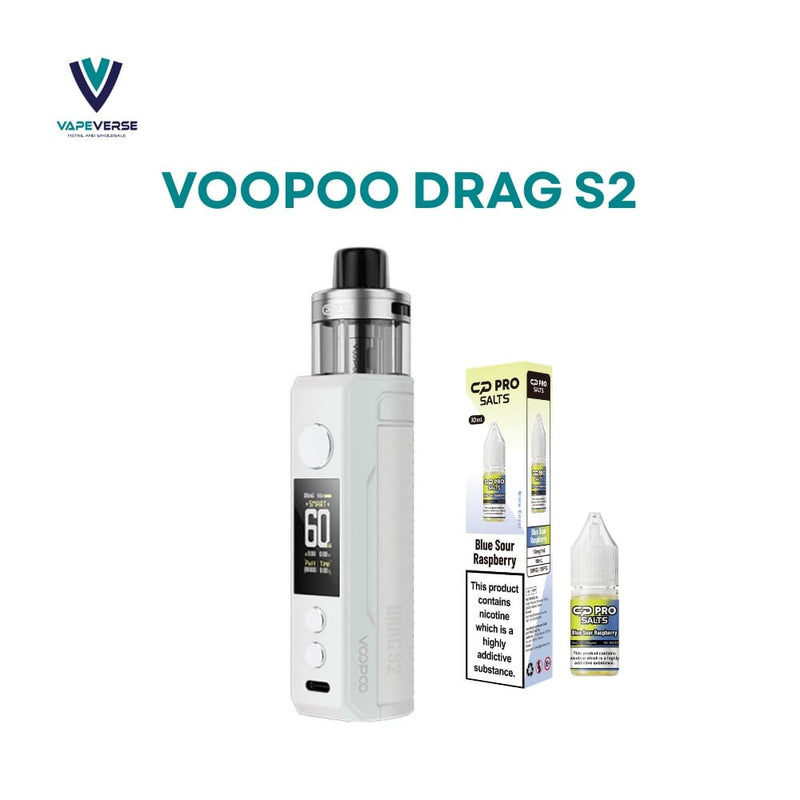

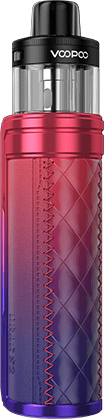

Voopoo Drag S2
What Is the VOOPOO Drag S2 Pod Vape Kit?
The VOOPOO Drag S2 is a refillable pod vape kit with a 2500mAh rechargeable internal battery, 5W-60W adjustable output, and compatibility with PnP X coils. The device supports both mouth-to-lung (MTL) and direct-to-lung (DTL) vaping through adjustable power settings. The Drag S2 automatically detects compatible PnP X coils in Smart Mode and allows manual wattage adjustment in RBA Mode. An adjustable top airflow system lets users fine-tune draw resistance, while the refillable 2ml pod supports consistent flavour production and vapour output with different PnP X coil options.
Specifications
| Specification | Details |
|---|---|
| Dimensions | 122 x 28.6 x 32.8mm |
| Weight | 141g |
| Battery | Built-in 2500mAh |
| Output Power | 5-60W |
| Output Voltage | 3.2-4.2V |
| Resistance Range | 0.1-3.0Ω |
| Charging | USB Type-C (5V/2A) |
| Pod Capacity | 2ml (TPD Compliant) |
| Filling Method | Side Fill |
| Airflow | Adjustable Top Airflow |
| Display | 0.96-inch TFT Screen |
| Chipset | GENE.TT 2.0 |
| Compatible Coils | PnP X Platform |
Key Features
2500mAh Rechargeable Battery
The Drag S2 features a built-in 2500mAh battery, providing enough capacity for extended vaping throughout the day under normal use. Battery performance depends on factors including selected wattage, installed coil resistance, vaping frequency, and airflow setting. The device recharges using a USB Type-C connection, allowing faster and more convenient charging than older Micro-USB systems.
2ml Eliquid Pod Capacity
The VOOPOO Drag S2 features a 2ml refillable pod that complies with UK TPD regulations. The pod includes a side-fill system that simplifies refilling and reduces spills during everyday use, while the magnetic pod connection keeps the pod securely in place. A transparent pod lets users monitor e-liquid levels without removing the pod, and compatibility with the complete PnP X coil platform supports multiple MTL and DTL vaping styles.
Adjustable Top-Airflow Design
The VOOPOO Drag S2 features an adjustable top-airflow system that supports both mouth-to-lung (MTL) and direct-to-lung (DTL) vaping. The airflow control lets users adjust the inhale from a tighter MTL draw to a looser DTL inhale. The top-airflow design reduces e-liquid leakage through the airflow channel and minimises condensation around the pod during daily use.
GENE.TT 2.0 Chip
The VOOPOO Drag S2 uses the GENE.TT 2.0 chipset to manage power delivery, recognise compatible PnP X coils, and optimise battery efficiency. The chipset supports Smart, RBA, and ECO modes, automatically recommending the correct wattage for compatible coils in Smart Mode, unlocking the full 5-60W adjustable output in RBA Mode, and reducing power consumption in ECO Mode to extend battery life when the charge is low.
Adjustable 5-60W Output
The VOOPOO Drag S2 delivers an adjustable 5-60W output, allowing different PnP X coil resistances to perform within their recommended wattage ranges. Lower wattages suit MTL vaping, while higher wattages produce increased vapour for RDL and DTL vaping.
Supports Both MTL and DTL Vaping
The VOOPOO Drag S2 supports mouth-to-lung (MTL) and direct-to-lung (DTL) vaping through compatible PnP X coils. Changing the coil resistance and airflow setting allows the same device to produce either a tighter cigarette-like inhale or a more open draw.
Smart, RBA and ECO Operating Modes
The VOOPOO Drag S2 offers Smart, RBA, and ECO modes through the GENE.TT 2.0 chipset. Smart Mode recommends suitable wattage, RBA Mode provides manual power adjustment, and ECO Mode reduces power consumption to help extend battery life.
Compatible with PnP X Coil
The VOOPOO Drag S2 is compatible with the PnP X coil platform, which improves flavour consistency, reduces leakage, and supports quick coil replacement. Each PnP X coil uses a directional fitting system for secure installation and a push-fit design for faster replacement. The platform features a four-layer leak-resistant coil structure, and VOOPOO states that a single coil can vaporise up to 100ml of e-liquid under laboratory testing conditions, although actual coil lifespan depends on e-liquid composition, wattage, and individual vaping habits.
USB Type-C Charging
The VOOPOO Drag S2 charges through a USB Type-C port, providing a convenient and reliable charging connection. The modern charging standard reduces downtime between vaping sessions and supports stable power delivery when recharging the built-in battery.
Six Integrated Safety Protections
The VOOPOO Drag S2 includes six integrated safety protections managed by the GENE.TT 2.0 chipset. These protections help guard against short circuits, overcharging, excessive output current, overheating, overtime vaping, and low battery voltage for more reliable everyday operation.
What's Included in the Box?
The box contains the following components.
- 1 x VOOPOO Drag S2 Device
- 1 x 2ml PnP X Pod
- Compatible PnP X coils
- USB Type-C charging cable
- User manual

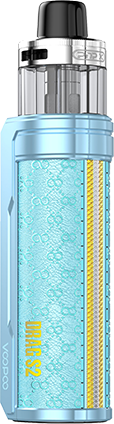

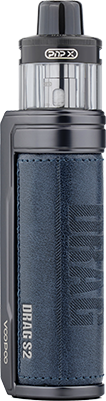

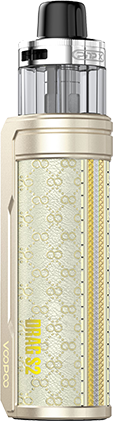

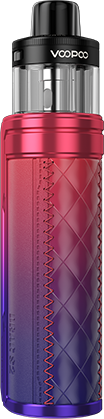

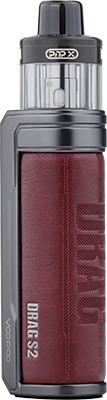

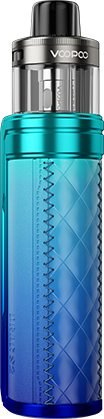

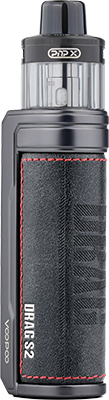

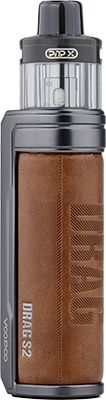

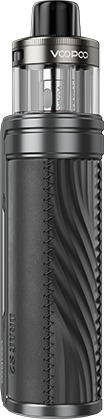

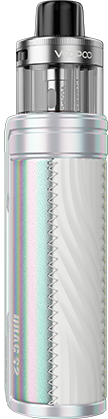

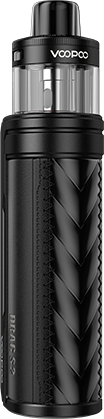

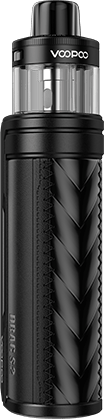

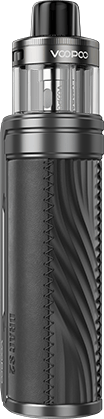

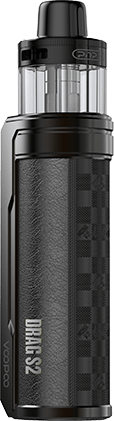

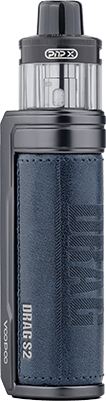

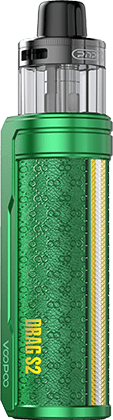

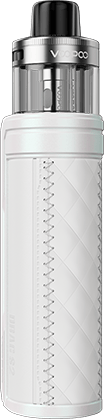

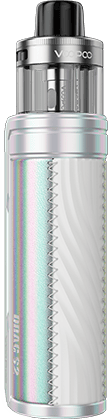

What Colours Is the VOOPOO Drag S2 Available In?
The VOOPOO Drag S2 Pod Vape Kit is available in multiple finishes, allowing you to choose a style that suits your preference without changing the device's features or performance. Available colours include the following options.

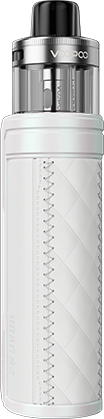

- Pearl White

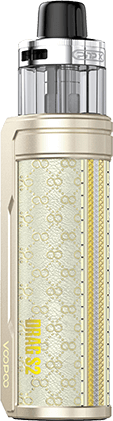

- Champagne Golden

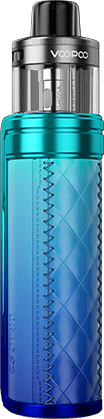

- Snow Blue

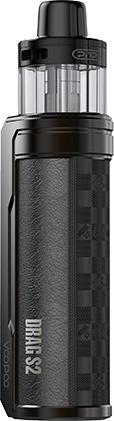

- Checkered Black

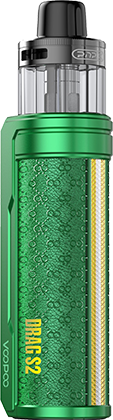

- Moss Green
- Spray Black
- Modern Red
- Colorful Silver
- Gray Metal

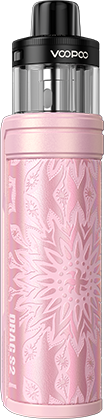

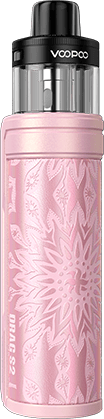

- Glow Pink
- Sky Blue

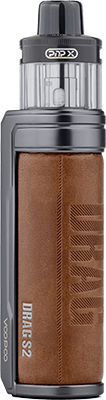

- Retro

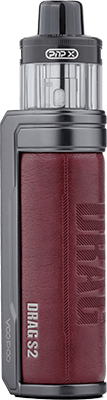

- Marsala

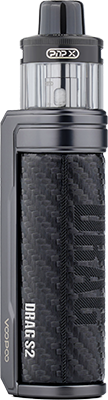

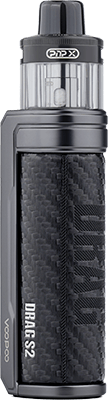

- Carbon Fiber

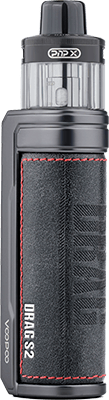

- Classic
- Galaxy Blue
Available colours may vary depending on stock availability.
How Does the GENE.TT 2.0 Chip Improve Performance?
The VOOPOO Drag S2 uses the GENE.TT 2.0 chipset to manage power delivery, recognise compatible PnP X coils, and improve battery efficiency. The chipset automatically adjusts power output according to the installed coil and the selected operating mode.
Smart Mode
Smart Mode detects a compatible PnP X coil and automatically recommends an appropriate wattage range. Automatic wattage adjustment prevents excessive power delivery and simplifies device setup.
RBA Mode
RBA Mode unlocks the full 5-60W adjustable output and lets users select their preferred wattage manually for different e-liquids and vaping styles.
ECO Mode
ECO Mode reduces power consumption when the battery charge is low to extend vaping time between charges.
What Safety Features Does the Drag S2 Include?
The GENE.TT 2.0 chipset continuously monitors device operation to help maintain safe performance. Built-in protections include the following six safety features.
- Overtime protection
- Short-circuit protection
- Overcharge protection
- Output over-current protection
- Low battery protection
- Chip over-temperature protection
These protections help safeguard both the device and battery during normal operation.
How Does the PnP X Coil Platform Improve Vaping?
The VOOPOO Drag S2 is compatible with the PnP X coil platform, which improves flavour consistency, reduces leakage, and supports quick coil replacement. Each PnP X coil uses a directional fitting system that ensures correct alignment inside the pod and a push-fit design for faster replacement. The platform features a four-layer leak-resistant coil structure that supports consistent vapour production. According to VOOPOO, a single PnP X coil can vaporise up to 100ml of e-liquid under laboratory testing conditions while maintaining flavour and reducing the risk of premature coil burning. Actual coil lifespan varies according to e-liquid composition, wattage settings, and individual vaping habits.
Which PnP X Coils Are Compatible?
The VOOPOO Drag S2 supports multiple PnP X coil resistances, allowing users to customise the device for different vaping styles. The available coils are grouped according to the draw they are designed to deliver.
| PnP X Coil | Vaping Style | Recommended E-liquid |
|---|---|---|
| 1.0Ω | MTL | 50/50 Nic Salt or Freebase |
| 0.8Ω | MTL | 50/50 Nic Salt or Freebase |
| 0.6Ω | RDL | 50/50 or 60VG |
| 0.45Ω | RDL | 60-70VG |
| 0.3Ω | DTL | 70VG |
| 0.2Ω | DTL | 70VG |
| 0.15Ω | DTL | 70VG |
Every PnP X coil presses into the same 2ml PnP X pod. The installed coil determines the inhale style, while the pod remains the same.
The PnP X Coil Ladder for the Drag S2
The VOOPOO Drag S2 supports seven PnP X coil resistances. Lower-resistance coils produce more vapour and suit direct-to-lung vaping, while higher-resistance coils create a tighter draw for mouth-to-lung vaping.
| Coil | Airflow | Best For |
|---|---|---|
| 0.15Ω | Open | High-power DTL |
| 0.2Ω | Open | DTL |
| 0.3Ω | Medium-Open | DTL |
| 0.45Ω | Restricted | RDL |
| 0.6Ω | Restricted | RDL |
| 0.8Ω | Tight | MTL |
| 1.0Ω | Tightest | MTL |
The coil ladder allows the Drag S2 to change vaping style without replacing the pod or device. Choosing a different resistance changes vapour production, airflow, and e-liquid suitability.
Which PnP X Coil Suits Your Inhale Style on the Drag S2?
The VOOPOO Drag S2 supports three inhale styles through the PnP X coil range.
MTL
- PnP X 1.0Ω
- PnP X 0.8Ω
Best with 50/50 nicotine salts or freebase e-liquids. Produces a tighter draw with lower vapour output.
RDL
- PnP X 0.6Ω
- PnP X 0.45Ω
Best with balanced VG/PG e-liquids. Produces a restricted direct-to-lung inhale.
DTL
- PnP X 0.3Ω
- PnP X 0.2Ω
- PnP X 0.15Ω
Best with high-VG freebase e-liquids. Produces an open draw with increased vapour production.
Every compatible PnP X coil fits the same refillable 2ml PnP X pod, so changing the coil changes the inhale style without replacing the pod.
How Do You Set Up and Maintain the VOOPOO Drag S2?
The VOOPOO Drag S2 uses the PnP X platform, making setup and routine maintenance straightforward. Installing the coil correctly, priming it before first use, selecting the appropriate vaping mode, and cleaning the pod regularly help maintain flavour, reduce leaking, and extend coil life.
How to Fill the VOOPOO Drag S2 Pod
The VOOPOO Drag S2 uses a refillable 2ml PnP X pod with a side-fill port.
Remove the pod from the device.
Lift the silicone fill plug.
Fill the pod with your chosen e-liquid without overfilling.
Close the fill port securely.
Reinsert the pod until it clicks into place.
Does a New PnP X Coil Need Priming First?
Yes, a new PnP X coil should absorb e-liquid before use. Fill the pod after installing the coil and leave it to stand for at least five minutes before vaping. Priming helps prevent dry hits and extends coil life.
How to Change a PnP X Coil in the VOOPOO Drag S2
The VOOPOO Drag S2 uses push-fit PnP X coils that can be replaced without tools.
Remove the pod from the device.
Pull the used coil straight out of the pod.
Press a compatible PnP X coil firmly into the pod.
Refill the pod with e-liquid.
Allow the coil to prime before vaping.
Do Older PnP Coils Fit the VOOPOO Drag S2?
No. The VOOPOO Drag S2 is designed for the PnP X coil platform. Earlier PnP coils are not interchangeable with PnP X coils, so only compatible PnP X coils should be used.
How to Switch Between Smart, RBA, and ECO Modes
The VOOPOO Drag S2 includes three operating modes that adjust how the device delivers power.
Press the fire button five times to switch the device on.
Enter the menu using the adjustment buttons.
Select Smart, RBA, or ECO mode.
Confirm the selection and begin vaping.
- Smart Mode automatically recommends an appropriate wattage for the installed PnP X coil.
- RBA Mode allows manual wattage adjustment between 5W and 60W.
- ECO Mode reduces power consumption to extend battery life when the battery charge is low.
Does the VOOPOO Drag S2 Support Auto-Draw?
No, the VOOPOO Drag S2 is a button-activated device. Vaping begins by pressing the fire button rather than inhaling through the mouthpiece.
Why Does the VOOPOO Drag S2 Leak or Taste Burnt?
The VOOPOO Drag S2 usually leaks or produces a burnt taste because the pod has been overfilled, the coil has not been primed, the coil has reached the end of its lifespan, or the installed coil does not match the e-liquid being used. To reduce these issues, try the following fixes.
- Prime every new PnP X coil before use.
- Close the fill port securely after refilling.
- Use the recommended VG/PG ratio for the installed coil.
- Replace the coil when flavour becomes muted or develops a burnt taste.
- Keep the pod and device contacts clean.
How Does the VOOPOO Drag S2 Compare with Other VOOPOO Kits?
The VOOPOO Drag S2 sits between compact pod kits and larger external-battery vape devices. It combines a built-in 2500mAh battery with the PnP X platform, making it suitable for users who want adjustable power without carrying spare batteries.
VOOPOO Drag X2 vs Drag S2
The Drag X2 uses a removable 18650 battery, while the Drag S2 uses a built-in 2500mAh battery. Both devices support up to 60W output and use the same PnP X pods and coils. Choose the Drag S2 if you prefer integrated battery charging. Choose the Drag X2 if you want to swap batteries instead of recharging the device.
VOOPOO Drag S3 vs Drag S2
The Drag S3 belongs to a newer generation of VOOPOO devices. VOOPOO officially lists PnP X compatibility for the Drag S2 and Drag X2, so PnP X pods and coils remain the manufacturer-supported platform for the Drag S2.
VOOPOO Argus Pro 2 vs Drag S2
Both devices support adjustable wattage and refillable pods. The Drag S2 focuses on the PnP X platform with a built-in 2500mAh battery and adjustable top airflow, making it a suitable choice for users who want compatibility across the full PnP X coil range.
FAQs
The VOOPOO Drag S2 uses a side-fill 2ml PnP X pod. Remove the pod from the device, open the silicone fill port, add e-liquid, close the plug securely, and leave the coil to prime for at least five minutes before vaping.
The VOOPOO Drag S2 turns on by pressing the fire button five times quickly. The same action turns the device off. Once powered on, you can switch between Smart, RBA, and ECO modes using the adjustment buttons.
The VOOPOO Drag S2 uses push-fit PnP X coils. Remove the pod, pull out the old coil, press a new coil firmly into the pod, refill with e-liquid, and allow the coil to saturate before using the device.
The VOOPOO Drag S2 supports different e-liquids depending on the installed PnP X coil. Higher-resistance MTL coils work best with 50/50 nicotine salts or freebase e-liquids, while lower-resistance DTL coils perform better with higher-VG freebase e-liquids.
The VOOPOO Drag S2 displays "Check Atomizer" when it cannot detect the installed coil correctly. Remove the pod, check that the coil is fully pressed into place, clean the contacts if needed, and reinsert the pod before trying again.
The VOOPOO Drag S2 pod should be emptied before cleaning. Rinse the pod with warm water, allow it to dry completely, and install a fresh PnP X coil before refilling. Avoid washing the coil, as replaceable coils are consumable components.
The VOOPOO Drag S2 supports nicotine salt e-liquids when used with compatible higher-resistance PnP X coils, including the 0.8Ω and 1.0Ω options. Lower-resistance coils are better suited to freebase e-liquids with a higher VG ratio.
The VOOPOO Drag S2 supports MTL, RDL, and DTL vaping through the PnP X coil platform. Changing the coil resistance and adjusting the airflow allows the same device to produce different inhale styles.
