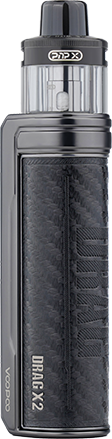

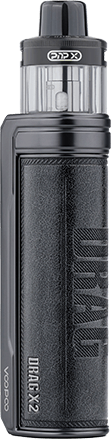

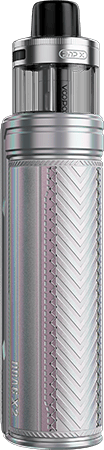

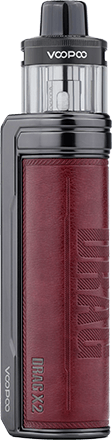

Voopoo Drag X2

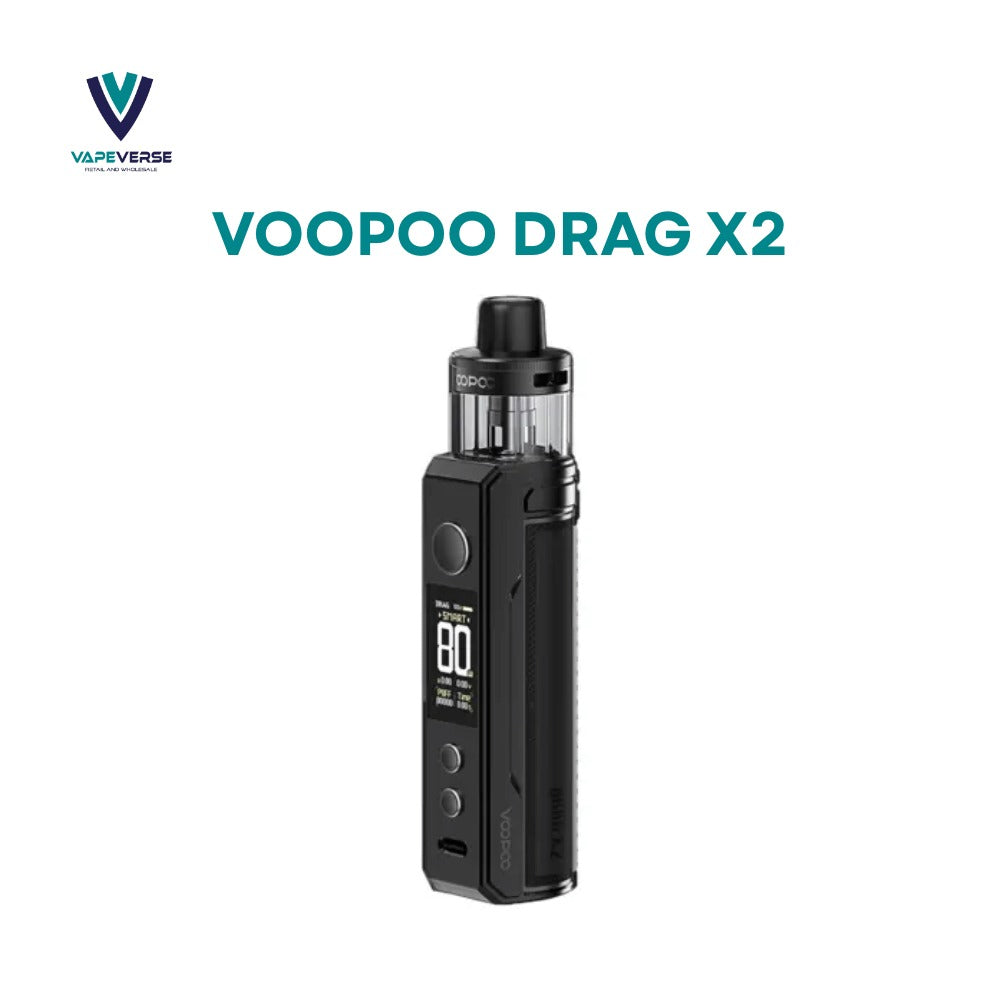

What is the Voopoo Drag X2?
The Voopoo Drag X2 is an 80W refillable pod kit that supports adjustable MTL, RDL, and DTL vaping. The Drag X2 uses a single removable 18650 battery, which is sold separately. The Voopoo Drag X2 operates with the PnP X coil platform and supports PnP X coil resistances from 0.15Ω to 1.0Ω. The refillable kit includes a 2ml TPD-compliant PnP X pod with a side-fill design.
The Voopoo Drag X2 delivers an adjustable output range of 5-80W through the Gene.TT 2.0 chipset. The Voopoo Drag X2 combines a zinc alloy frame with a leather grip for everyday handling.
Voopoo Drag X2 specifications
The Voopoo Drag X2 runs a single removable 18650 battery at 5-80W through the Gene.TT 2.0 chipset, pairs with a 2ml PnP X Cartridge DTL, and charges over USB Type-C. The full specification list is shown below.
| Specification | Details |
|---|---|
| Device Type | Refillable pod kit |
| Output Power | 5-80W |
| Output Voltage | 3.2-4.2V |
| Resistance Range | 0.1-3.0Ω |
| Chipset | Gene.TT 2.0 |
| Battery | Single 18650 battery (sold separately) |
| Pod Capacity (UK) | 2ml |
| Compatible Pods | PnP X Cartridge DTL |
| Compatible Coils | PnP X coil platform |
| Filling Method | Side-fill |
| Airflow | Adjustable top airflow |
| Charging | USB Type-C |
| Material | Zinc alloy and leather |
| Weight | 148g |
| Dimensions | 12cm × 3.1cm × 2.7cm |
Key Features
The Voopoo Drag X2 combines an adjustable 80W output, a removable 18650 battery, the Gene.TT 2.0 chipset, and full PnP X coil compatibility in one refillable pod kit. The following features explain how the Drag X2 performs during everyday use.
80W Adjustable Output
The 80W adjustable output allows the Voopoo Drag X2 to support different vaping styles with compatible PnP X coils. The device delivers a power range from 5W to 80W, enabling lower wattages for MTL vaping and higher wattages for RDL and DTL vaping. Users can adjust the output to match the installed coil's recommended wattage.
Compatible with Single Removable 18650 Battery
The single removable 18650 battery powers the Voopoo Drag X2 and is sold separately. The removable battery design allows users to replace a depleted cell instead of waiting for an internal battery to recharge. The device supports charging through the USB Type-C port or with a compatible external battery charger.
Gene.TT 2.0 Chipset
The Gene.TT 2.0 chipset manages the Voopoo Drag X2's power output and operating modes. The chipset supports Smart, RBA, and ECO modes, allowing the device to optimise wattage automatically, provide manual adjustment, or extend battery efficiency. It also manages resistance detection and multiple built-in safety protections.
Compatible with All PnP X Coils
The PnP X coil platform gives the Voopoo Drag X2 compatibility with all seven PnP X coil resistances from 0.15Ω to 1.0Ω. This compatibility allows the device to support MTL, RDL, and DTL vaping without changing the pod. Users only need to replace the coil to change their vaping style.
2ml TPD-Compliant PnP X Pod
The 2ml TPD-compliant PnP X pod allows the Voopoo Drag X2 to meet UK vaping regulations. The pod uses a side-fill design and works exclusively with PnP X coils. The refillable pod supports repeated coil replacement, allowing users to continue using the same pod while replacing worn coils.
Adjustable Top Airflow
The adjustable top airflow allows the Voopoo Drag X2 to control the amount of air entering the pod. Users can adjust the airflow to create a tighter MTL draw or a more open DTL inhale. The top airflow position also helps maintain consistent airflow during everyday use.
Leak-Resistant Pod Construction
The leak-resistant pod construction uses a top airflow design to reduce the possibility of e-liquid escaping through the airflow system. The airflow enters from the top of the pod before reaching the coil, helping keep the airflow path separated from the e-liquid reservoir during normal operation.
0.96-inch TFT Colour Display
The 0.96-inch TFT colour display provides the Voopoo Drag X2's operating information on a single screen. The display shows wattage, battery level, coil resistance, puff count, and other device settings. The colour interface allows users to monitor operating data while adjusting the device.
USB Type-C Charging
The USB Type-C charging port allows the installed 18650 battery to recharge while it remains inside the Voopoo Drag X2. The charging port provides a convenient charging option when an external charger is unavailable. Users can also remove the battery and charge it with a compatible external charger.
Zinc Alloy and Leather Construction
The zinc alloy and leather construction gives the Voopoo Drag X2 a durable body with a comfortable grip. The zinc alloy frame provides structural strength, while the leather panel improves handling during everyday use. The combination also helps reduce wear from regular carrying and operation.
Six Integrated Safety Protections
The six integrated safety protections help the Voopoo Drag X2 monitor device operation during everyday use. The Gene.TT 2.0 chipset manages functions such as overcharge, overcurrent, short-circuit, over-temperature, over-discharge, and overtime protection. These protections help maintain stable device performance while vaping.
What's in the Voopoo Drag X2 box?
The Voopoo Drag X2 box contains everything required to assemble the device, except the removable 18650 battery. The battery is purchased separately because the Drag X2 uses a replaceable 18650 cell. The box includes the following components.
- 1 × Voopoo Drag X2 Device
- 1 × PnP X Cartridge DTL (2ml)
- 1 × PnP X 0.15Ω Coil (Pre-installed)
- 1 × PnP X 0.3Ω Coil
- 1 × USB Type-C Charging Cable
- 1 × User Manual
- 1 × PnP X Platform Card

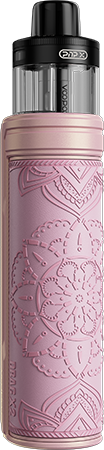

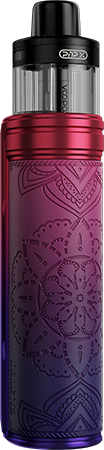

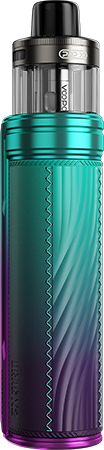

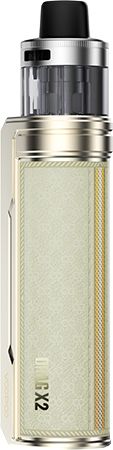

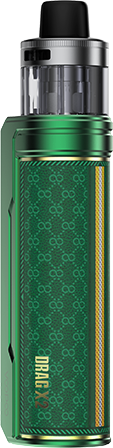

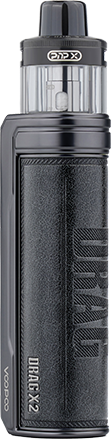

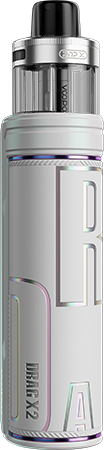

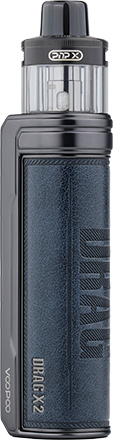

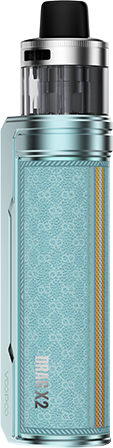

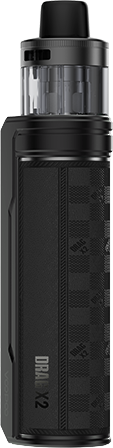

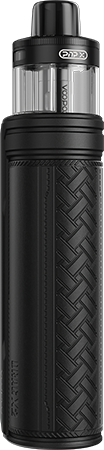

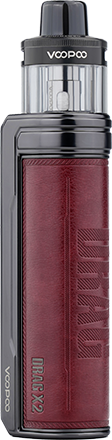

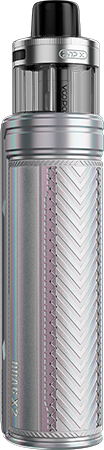

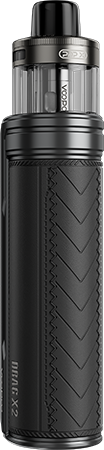

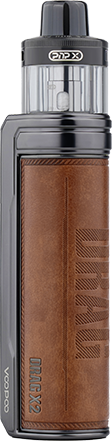

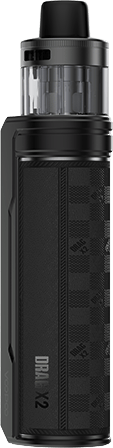

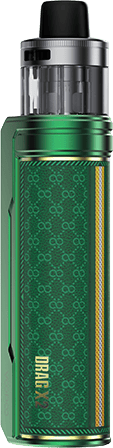

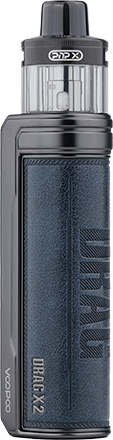

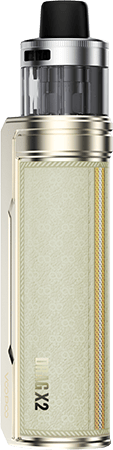

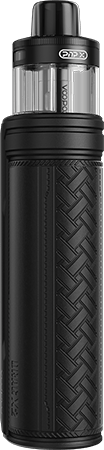

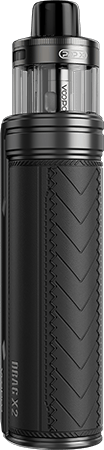

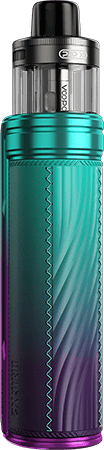

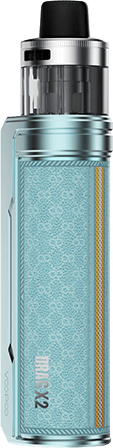

Voopoo Drag X2 Available Colours
The Voopoo Drag X2 is available in 16 colour finishes as mentioned below.

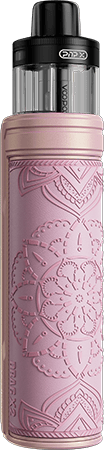

- Glow Pink

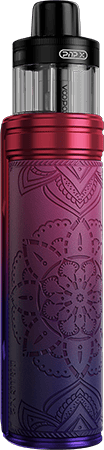

- Modern Red
- Colourful Silver
- Spray Black

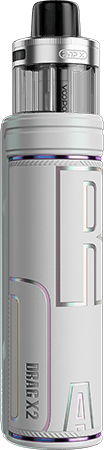

- Pearl White

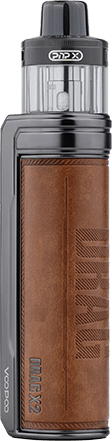

- Pearl Brown
- Sky Blue

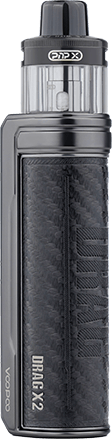

- Carbon Fibre
- Grey Metal
- Pine Green
- Spray Black & Walnut
- Silver & Walnut
- Sakura Pink
- Moss Green
- Ocean Blue
- Classic Black
PnP X coils and pods that fit the Voopoo Drag X2
PnP X coils are replaceable mesh coils designed for the PnP X platform, while the PnP X Cartridge DTL is the compatible pod for the Voopoo Drag X2. The Voopoo Drag X2 supports all seven PnP X coil resistances, ranging from 0.15Ω to 1.0Ω, allowing the device to deliver DTL, RDL, and MTL vaping from a single platform. The Drag X2 produces 5-80W adjustable output, covering the complete recommended wattage range of every compatible PnP X coil. The PnP X Cartridge DTL accepts every PnP X replacement coil, eliminating the need to change pods when switching between vaping styles. The table below compares every compatible PnP X coil by resistance, inhale style, recommended wattage range, and box inclusion.
| PnP X Coil | Inhale Style | Recommended Wattage | Included in Box | Sold Separately |
|---|---|---|---|---|
| PnP X 0.15Ω | DTL | 60-80W | ✓ (Pre-installed) | ✓ |
| PnP X 0.2Ω | DTL | 40-60W | ✗ | ✓ |
| PnP X 0.3Ω | DTL & RDL | 32-40W | ✓ | ✓ |
| PnP X 0.45Ω | RDL | 25-32W | ✗ | ✓ |
| PnP X 0.6Ω | MTL & RDL | 18-23W | ✗ | ✓ |
| PnP X 0.8Ω | MTL | 12-16W | ✗ | ✓ |
| PnP X 1.0Ω | MTL | 10-13W | ✗ | ✓ |
The Voopoo Drag X2 supports every PnP X coil across the complete resistance range, allowing users to switch between DTL, RDL, and MTL vaping without changing the device. The kit includes a 0.15Ω PnP X coil pre-installed for high-power DTL vaping and a 0.3Ω PnP X coil for DTL or RDL vaping. The 0.15Ω coil operates within 60-80W, and the Drag X2's 80W maximum output covers its full recommended wattage range. Replacement PnP X coils are available separately when the supplied coils require replacement.
Which PnP X coil suits your inhale style on the Drag X2?
PnP X coils support DTL, RDL, and MTL vaping on the Voopoo Drag X2. The compatible coil determines the inhale style, recommended wattage, and vapour production, while the same 2ml PnP X Cartridge DTL remains installed. Changing the coil allows the Drag X2 to switch between vaping styles without replacing the pod.
| PnP X Coil | Inhale Style | Recommended Wattage | Best For |
|---|---|---|---|
| PnP X 0.15Ω | DTL | 60-80W | Maximum vapour production and direct-to-lung vaping |
| PnP X 0.2Ω | DTL | 40-60W | High vapour output with slightly lower power consumption |
| PnP X 0.3Ω | DTL & RDL | 32-40W | Balanced vapour production with a versatile draw |
| PnP X 0.45Ω | RDL | 25-32W | Restricted direct-to-lung vaping with moderate vapour |
| PnP X 0.6Ω | MTL & RDL | 18-23W | Balanced mouth-to-lung and restricted direct-to-lung vaping |
| PnP X 0.8Ω | MTL | 12-16W | Smooth mouth-to-lung vaping with lower power output |
| PnP X 1.0Ω | MTL | 10-13W | Tight mouth-to-lung draws with the lowest power requirement |
The PnP X 0.15Ω and 0.2Ω coils suit DTL vaping with higher wattage and increased vapour production. The 0.3Ω and 0.45Ω coils support RDL vaping while maintaining strong flavour and moderate airflow. The 0.6Ω, 0.8Ω, and 1.0Ω coils suit MTL vaping with lower wattage and a tighter inhale. The Voopoo Drag X2 supports every compatible PnP X coil, allowing users to change inhale styles by replacing the installed coil while continuing to use the same 2ml PnP X Cartridge DTL.
How Does the Voopoo Drag X2 Compare to Other Voopoo Vape Kits?
The Voopoo Drag X2 differs from related Voopoo vape kits by battery format, coil platform, and device generation. The Drag X2 uses a removable 18650 battery, supports the PnP X coil platform, and pairs with a 2ml PnP X Cartridge DTL. These features distinguish the Drag X2 from older Drag devices and help buyers choose the model that matches their vaping preferences.
Voopoo Drag X2 vs Drag S2
The main difference between the Voopoo Drag X2 and Drag S2 is the battery format. The Drag X2 uses a single removable 18650 battery, while the Drag S2 contains a built-in rechargeable battery. Both devices support the PnP X coil platform, use the same 2ml PnP X Cartridge DTL, and deliver DTL, RDL, and MTL vaping through compatible PnP X coils. The Drag X2 suits users who prefer carrying spare batteries, whereas the Drag S2 suits users who prefer charging the device directly.
Voopoo Drag X2 vs Drag X
The main difference between the Voopoo Drag X2 and Drag X is the coil platform. The original Drag X uses the PnP coil platform, while the Drag X2 uses the newer PnP X coil platform. The original Drag X launched in 2020, making it an earlier generation within the Drag series. PnP coils are not compatible with the Drag X2, as the PnP X platform uses a different coil design and pod system.
Voopoo Drag X2 vs Drag X3
The main difference between the Voopoo Drag X2 and Drag X3 is the product generation. The Drag X3 is a separate model within the Drag series rather than a revision of the Drag X2. Published product information confirms the Drag X3 as a distinct device. No verified specification differences beyond product generation are available from the referenced sources, so a detailed technical comparison cannot be made.
The table below summarises the primary differences between the Voopoo Drag X2 and related Voopoo devices.
| Device | Battery Format | Coil Platform | Key Difference |
|---|---|---|---|
| Voopoo Drag X2 | Single removable 18650 | PnP X | Current-generation removable-battery pod kit |
| Voopoo Drag S2 | Built-in rechargeable battery | PnP X | Uses an integrated battery instead of a removable cell |
| Voopoo Drag X | Single removable 18650 | PnP | Uses the original PnP platform and does not support PnP X coils |
| Voopoo Drag X3 | Varies by model | Different generation | Separate product within the Drag series with limited verified comparison data |
The Voopoo Drag X2 combines a removable 18650 battery, PnP X coil compatibility, and a 2ml PnP X Cartridge DTL. Buyers who want battery flexibility benefit from the Drag X2, while users who prefer integrated charging may prefer the Drag S2. Users upgrading from the original Drag X should note that PnP and PnP X coils are not interchangeable.
How Do You Set Up and Maintain the Voopoo Drag X2?
Setting up and maintaining the Voopoo Drag X2 involves installing the battery, filling the pod, replacing the coil, and resolving common device messages. The device uses a single removable 18650 battery, a 2ml PnP X Cartridge DTL, and the PnP X coil platform. Following the correct setup routine ensures consistent performance and extends coil life.
How Do You Install and Charge the 18650 Battery?
The Voopoo Drag X2 operates with one removable 18650 battery. The battery installs beneath the battery cover and charges through the USB Type-C port or a compatible external battery charger. The kit does not include an 18650 battery, so a compatible cell must be purchased separately.
Open the Battery Compartment
Open the battery compartment on the Voopoo Drag X2.
Insert the 18650 Battery
Insert one 18650 battery with the correct polarity.
Close the Battery Cover
Close the battery cover securely before use.
Charge the Battery
Charge the battery through the USB Type-C port or a compatible external charger.
Power On the Device
Press the fire button five times to power on the device.
How Do You Fill the PnP X Pod?
The Voopoo Drag X2 uses a 2ml side-fill PnP X Cartridge DTL. The side-fill design allows the pod to be refilled without removing the installed coil.
Remove the Pod
Remove the PnP X Cartridge DTL from the device.
Lift the Fill Plug
Lift the silicone side-fill plug on the pod.
Fill the Pod
Fill the pod with compatible e-liquid up to the 2ml capacity.
Close the Fill Port
Close the fill port securely to seal the pod.
Reinstall the Pod
Reinstall the pod into the Voopoo Drag X2.
Allow a new coil to saturate for approximately five minutes after filling the pod. Priming the cotton helps prevent dry hits during first use.
How Do You Replace a PnP X Coil?
The Voopoo Drag X2 uses replaceable PnP X mesh coils. Replacing the coil restores flavour and vapour production while allowing the existing pod to remain in use.
Remove the Pod
Remove the pod from the device.
Pull Out the Old Coil
Pull the installed PnP X coil from the pod.
Fit the New Coil
Push the new PnP X coil firmly into place.
Refill if Required
Refill the pod with e-liquid if required.
Reinstall Before Vaping
Reinstall the pod before vaping.
Do Older PnP Coils Fit the Voopoo Drag X2?
No. The Voopoo Drag X2 is compatible only with PnP X coils. The original PnP coil platform used by earlier devices, including the Voopoo Drag X, does not fit the PnP X Cartridge DTL.
How Long Does a PnP X Coil Last?
PnP X coil lifespan depends on e-liquid composition, power setting, and vaping frequency. Most users replace a PnP X coil every 1 to 3 weeks under normal use, although sweeter e-liquids and higher wattages can shorten coil life. Replace the coil when flavour decreases, vapour production drops, or a burnt taste develops.
Why Does the Voopoo Drag X2 Show "Check Atomizer"?
The "Check Atomizer" message indicates that the device cannot detect the installed coil. The warning usually appears when the coil is not fully seated or the pod is not making proper contact with the device. Follow these steps to restore the connection:
- Remove the pod from the device.
- Check that the PnP X coil is fully inserted.
- Reinstall the pod securely.
- Confirm that the 18650 battery is installed correctly.
- Replace the coil if the message continues after reseating it.
Completing these setup and maintenance routines keeps the Voopoo Drag X2 operating correctly while maintaining flavour, vapour production, and reliable coil performance.
Frequently Asked Questions
What wattage lock functions does the Voopoo Drag X2 support?
The Voopoo Drag X2 powers on by pressing the fire button five times. Gene.TT 2.0 devices also support wattage locking through the button controls documented by VOOPOO.
Does the Voopoo Drag X2 include a carry case?
No, the Voopoo Drag X2 does not include a carry case. The standard box contents list the device, pod, coils, charging cable, manual, and Platform Card only. The device body combines zinc alloy with a leather finish.
Who can buy the Voopoo Drag X2 in the UK?
UK law restricts the sale of the Voopoo Drag X2 and e-liquids to customers aged 18 or over. The Nicotine Inhaling Products (Age of Sale and Proxy Purchasing) Act 2015 sets the minimum purchase age, while the Tobacco and Related Products Regulations 2016 limit nicotine strength to 20mg/ml and refillable pod capacity to 2ml.
